[Huawei]system-view 进入视图模式
[Huawei]undo info-center enable 关闭消息控制台
Info: Information center is disabled.
[Huawei]sysname 2sw1 重命名2sw1
[2sw1]vlan batch 10 20 创建vlan10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[2sw1]interface e0/0/1 进入e0/0/1接口
[2sw1-Ethernet0/0/1]port link-type access 端口链路类型为接入链路
[2sw1-Ethernet0/0/1]port default vlan 10 端口接入vlan10
[2sw1-Ethernet0/0/1]quit 退出
[2sw1]interface e0/0/2 进入e0/0/2接口
[2sw1-Ethernet0/0/2]port link-type access 端口链路类型为接入链路
[2sw1-Ethernet0/0/2]port default vlan 20 端口接入vlan20
[2sw1-Ethernet0/0/2]quit 退出
[2sw1]interface g0/0/2 进入g0/0/2接口
[2sw1-GigabitEthernet0/0/2]port link-type trunk 端口链路类型为中继链路
[2sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20 端口中继链路允许vlan10 20通过
[2sw1-GigabitEthernet0/0/2]quit 退出
三、配置二层的第二台交换机2SW2
<Huawei>system-view 进入视图模式
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable 关闭消息控制台
Info: Information center is disabled.
[Huawei]sysname 2sw2 重命名2sw2
[2sw2]vlan 30 创建vlan30
[2sw2-vlan30]quit 退出
[2sw2]interface e0/0/1 进入e0/0/1接口
[2sw2-Ethernet0/0/1]port link-type access 端口链路类型为接入链路
[2sw2-Ethernet0/0/1]port default vlan 30 端口接入vlan30
[2sw2-Ethernet0/0/1]quit 退出
[2sw2]interface e0/0/2 进入e0/0/2接口
[2sw2-Ethernet0/0/2]port link-type trunk 端口链路类型为中继链路
[2sw2-Ethernet0/0/2]port trunk allow-pass vlan 30 端口中继链路允许vlan30通过
[2sw2-Ethernet0/0/2]quit 退出
四、配置三层交换机3SW1
<Huawei>system-view 进入视图模式
Enter system view, return user view with Ctrl+Z.
[Huawei]undo info-center enable 关闭消息控制台
Info: Information center is disabled.
[Huawei]sysname 3sw1 重命名3sw1
[3sw1]vlan batch 10 20 30 创建vlan10 20 30
Info: This operation may take a few seconds. Please wait for a moment...done.
[3sw1]port-group group-member g0/0/1 g0/0/2 g0/0/3 进入端口g0/0/1 g0/0/2 g0/0/3
[3sw1-port-group]port link-type trunk 端口链路类型为中继链路
[3sw1-GigabitEthernet0/0/1]port link-type trunk 端口链路类型为中继链路
[3sw1-GigabitEthernet0/0/2]port link-type trunk 端口链路类型为中继链路
[3sw1-GigabitEthernet0/0/3]port link-type trunk 端口链路类型为中继链路
[3sw1-port-group]port trunk allow-pass vlan all 端口中继链路允许所有vlan通过
[3sw1-GigabitEthernet0/0/1]port trunk allow-pass vlan all端口中继链路允许所有vlan通过
[3sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan all端口中继链路允许所有vlan通过
[3sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan all 端口中继链路允许所有vlan通过
[3sw1-port-group]quit 退出
五、配置路由器R1
<ar1>system-view 进入视图模式
Enter system view, return user view with Ctrl+Z.
[ar1]undo info-center enable
Info: Information center is disabled.
[ar1]sysname r1 重命名r1
[r1]interface g0/0/0.10 进入g0/0/0的子接口10
[r1-GigabitEthernet0/0/0.10]ip address 192.168.1.1 24 设置IP192.168.1.1 子网掩码24
[r1-GigabitEthernet0/0/0.10]dot1q termination vid 10 将vlan10的终端封装成iEEE802.1q
[r1-GigabitEthernet0/0/0.10]arp broadcast enable 开启arp广播
[r1-GigabitEthernet0/0/0.10]quit
[r1]
[r1]interface g0/0/0.20 进入g0/0/1.20的子接口
[r1-GigabitEthernet0/0/0.20]ip address 192.168.2.1 24 设置IP192.168.2.1 子网掩码24
[r1-GigabitEthernet0/0/0.20]dot1q termination vid 20 将vlan20的终端封装成iEEE802.1q
[r1-GigabitEthernet0/0/0.20]arp broadcast enable开启arp广播
[r1-GigabitEthernet0/0/0.20]quit 退出
[r1]
[r1]interface g0/0/0.30 进入g0/0/1.30的子接口
[r1-GigabitEthernet0/0/0.30]ip address 192.168.3.1 24 设置IP192.168.3.1 子网掩码24
[r1-GigabitEthernet0/0/0.30]dot1q termination vid 30 将vlan30的终端封装成iEEE802.1q
[r1-GigabitEthernet0/0/0.30]arp broadcast enable 开启arp广播
[r1-GigabitEthernet0/0/0.30]quit 退出
六、查看IP接口的详细信息
[r1]display ip interface brief
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 5
The number of interface that is DOWN in Physical is 2
The number of interface that is UP in Protocol is 4
The number of interface that is DOWN in Protocol is 3
Interface IP Address/Mask Physical Protocol
GigabitEthernet0/0/0 unassigned up down
GigabitEthernet0/0/0.10 192.168.1.1/24 up up
GigabitEthernet0/0/0.20 192.168.2.1/24 up up
GigabitEthernet0/0/0.30 192.168.3.1/24 up up
GigabitEthernet0/0/1 unassigned down down
GigabitEthernet0/0/2 unassigned down down

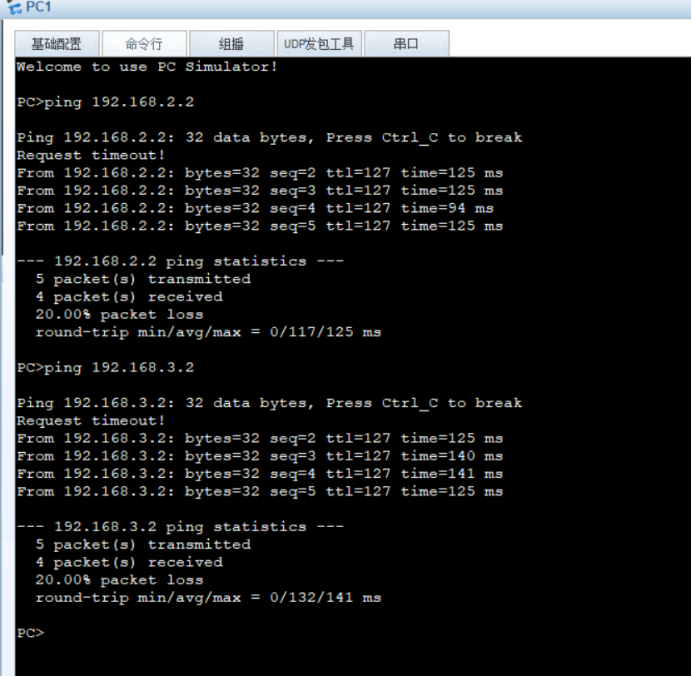

NULL0 unassigned up up(s)
