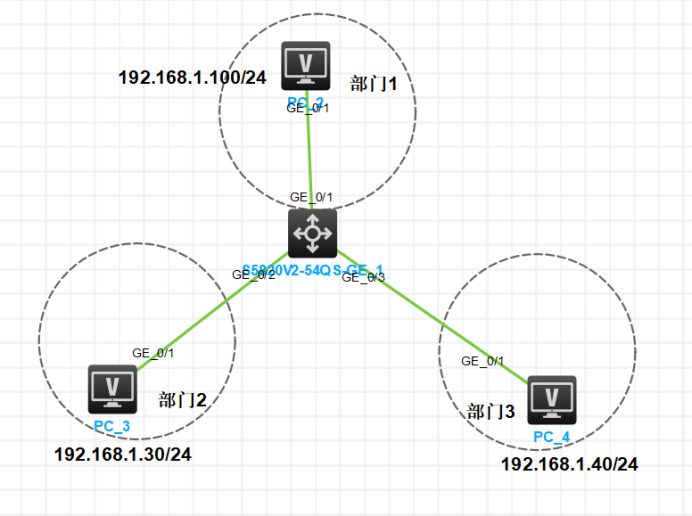

一、实验环境：

二、配置交换机SW1 为混合链路

<H3C>system-view
System View: return to User View with Ctrl+Z.
[H3C]undo info-center enable
Information center is disabled.
[H3C]sysname SW1
[SW1]vlan 100
[SW1-vlan100]vlan 30
[SW1-vlan30]vlan 40
[SW1-vlan40]quit
[SW1]interface g 1/0/1
[SW1-GigabitEthernet1/0/1]port link-type hybrid		端口链路类型为混合链路
[SW1-GigabitEthernet1/0/1]port hybrid pvid vlan 100	端口混合链路打标记
[SW1-GigabitEthernet1/0/1]port hybrid vlan 100 30 40 untagged	端口混合链路进交换机来时不打100、30、40的标记
[SW1-GigabitEthernet1/0/1]quit
[SW1]interface g 1/0/2
[SW1-GigabitEthernet1/0/2]port link-type hybrid
[SW1-GigabitEthernet1/0/2]port hybrid pvid vlan 30
[SW1-GigabitEthernet1/0/2]port hybrid vlan 100 30 untagged
[SW1-GigabitEthernet1/0/2]quit
[SW1]interface g 1/0/3
[SW1-GigabitEthernet1/0/3]port link-type hybrid
[SW1-GigabitEthernet1/0/3]port hybrid pvid vlan 40
[SW1-GigabitEthernet1/0/3]port hybrid vlan 100 40 untagged
[SW1-GigabitEthernet1/0/3]quit

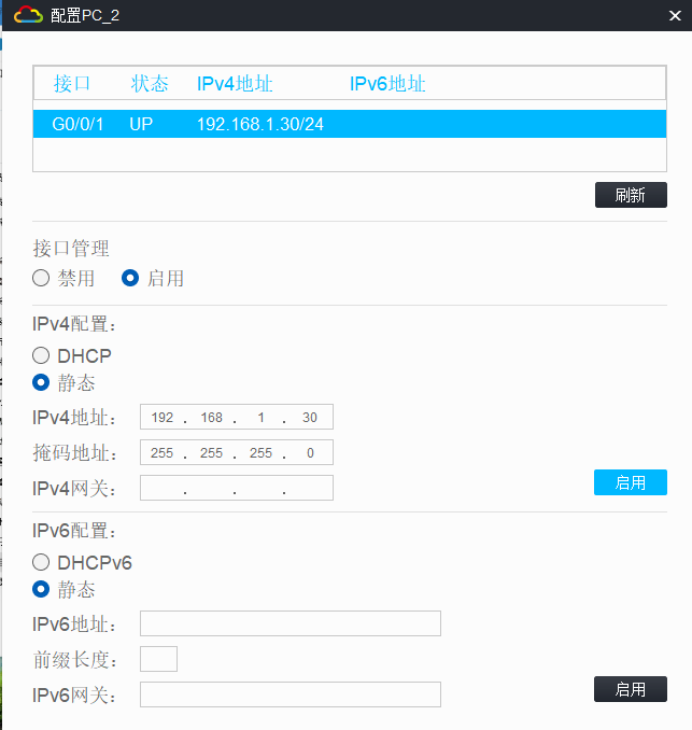

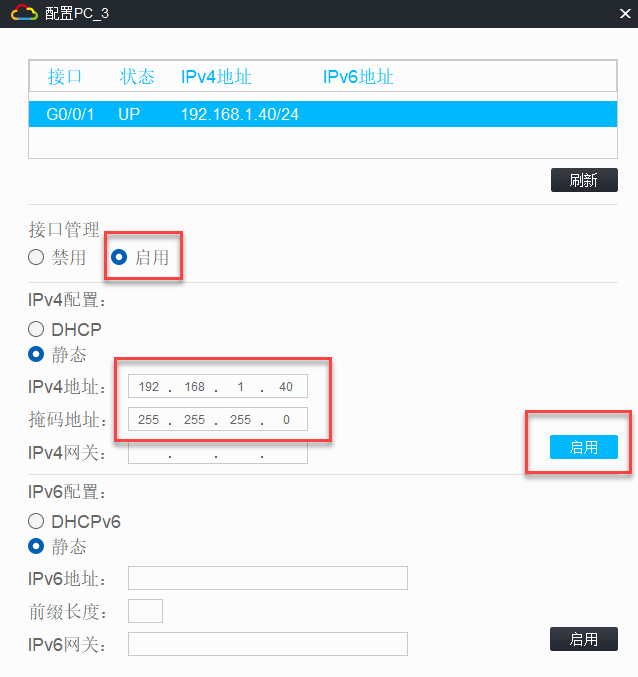

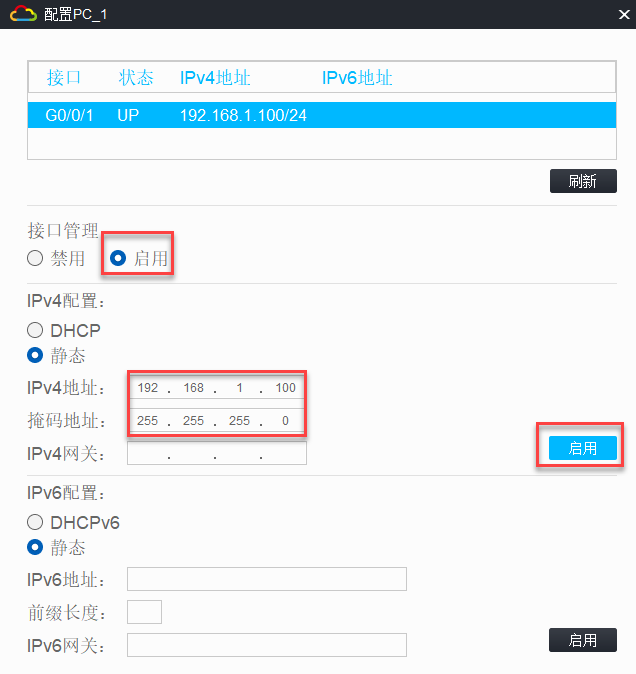

三、配置PC IP：

四、192.168.1.100 ping 192.168.1.30、192.168.1.40 验证：

<H3C>ping 192.168.1.30
Ping 192.168.1.30 (192.168.1.30): 56 data bytes, press CTRL_C to break
56 bytes from 192.168.1.30: icmp_seq=0 ttl=255 time=4.804 ms
56 bytes from 192.168.1.30: icmp_seq=1 ttl=255 time=2.389 ms
56 bytes from 192.168.1.30: icmp_seq=2 ttl=255 time=1.852 ms
56 bytes from 192.168.1.30: icmp_seq=3 ttl=255 time=2.013 ms
56 bytes from 192.168.1.30: icmp_seq=4 ttl=255 time=3.368 ms

--- Ping statistics for 192.168.1.30 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.852/2.885/4.804/1.094 ms
<H3C>%May 13 08:19:15:773 2025 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.30: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 1.852/2.885/4.804/1.094 ms.

<H3C>ping 192.168.1.40
Ping 192.168.1.40 (192.168.1.40): 56 data bytes, press CTRL_C to break
56 bytes from 192.168.1.40: icmp_seq=0 ttl=255 time=4.724 ms
56 bytes from 192.168.1.40: icmp_seq=1 ttl=255 time=1.757 ms
56 bytes from 192.168.1.40: icmp_seq=2 ttl=255 time=1.349 ms
56 bytes from 192.168.1.40: icmp_seq=3 ttl=255 time=3.387 ms
56 bytes from 192.168.1.40: icmp_seq=4 ttl=255 time=4.488 ms

--- Ping statistics for 192.168.1.40 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 1.349/3.141/4.724/1.379 ms
<H3C>%May 13 08:19:24:645 2025 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.40: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 1.349/3.141/4.724/1.379 ms.

五、192.168.1.30 ping 192.168.1.40、192.168.1.100

<H3C>ping 192.168.1.40
Ping 192.168.1.40 (192.168.1.40): 56 data bytes, press CTRL_C to break
Request time out
Request time out
Request time out
Request time out
Request time out

--- Ping statistics for 192.168.1.40 ---
5 packet(s) transmitted, 0 packet(s) received, 100.0% packet loss
<H3C>%May 13 08:19:55:720 2025 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.40: 5 packet(s) transmitted, 0 packet(s) received, 100.0% packet loss.

<H3C>ping 192.168.1.100
Ping 192.168.1.100 (192.168.1.100): 56 data bytes, press CTRL_C to break
56 bytes from 192.168.1.100: icmp_seq=0 ttl=255 time=2.318 ms
56 bytes from 192.168.1.100: icmp_seq=1 ttl=255 time=4.960 ms
56 bytes from 192.168.1.100: icmp_seq=2 ttl=255 time=3.261 ms
56 bytes from 192.168.1.100: icmp_seq=3 ttl=255 time=2.598 ms
56 bytes from 192.168.1.100: icmp_seq=4 ttl=255 time=3.766 ms

--- Ping statistics for 192.168.1.100 ---
5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss
round-trip min/avg/max/std-dev = 2.318/3.381/4.960/0.938 ms
<H3C>%May 13 08:20:03:737 2025 H3C PING/6/PING_STATISTICS: Ping statistics for 192.168.1.100: 5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss, round-trip min/avg/max/std-dev = 2.318/3.381/4.960/0.938 ms.
